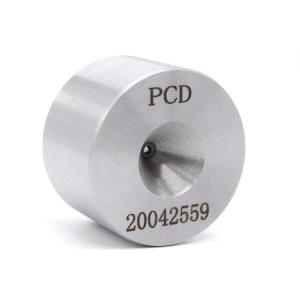

D6 0.4mm Non Ferrous Wire Drawing Dies Ferrous Die Casting

Model Number : D6 - D36

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200 pieces per day

Delivery Time : 5-10 work days

Packaging Details : Carton, Box

Wire Drawing Dies : PCD Drawing Dies

Material : Polycrystalline diamond

Shape : Round

Surface treatment : Polishing

Application : Wire Drawing Industry

Mold Life : 1-2 years

Contact Now

Wire Drawing Dies for ferrous and non-ferrous wire

1. Description:

Polycrystalline Diamond (PCD) Wire Drawing Dies can be used for a wide range of drawing applications. PCD Dies offer a high resistance to wear and an excellent wire surface finish.

2. Specifications:

inches	mm	ADDMA	Maximum Diameter
0.0039-0.0157	0.100-0.400	D6	0.4
0.0079-0.0315	0.200-0.800	D12	0.8
0.0079-0.0394	0.200-1.000	D12	1.0
0.0197-0.0591	0.500-1.500	D15	1.5
0.0197-0.0591	0.500-1.500	D15	1.5
0.0315-0.0787	0.800-2.000	D18	2.0
0.0315-0.0787	0.800-2.000	D18	2.0
0.0472-0.1181	1.200-3.100	D21	3.1
0.0472-0.1181	1.200-3.100	D21	3.1
0.0591-0.1732	1.500-4.400	D24	4.4
0.0591-0.1732	2.000-4.400	D24	4.4
0.1299-0.2126	3.300-5.400	D27	5.4
0.1299-0.2183	3.300-5.800	D27	5.8
0.2008-0.2992	5.100-7.600	D30	7.6
0.3150-0.4331	8.000-11.000	D33	11.0
0.3150-0.4409	8.000-11.200	D30	11.2
0.3150-0.4724	8.000-12.000	D33	12.0
0.3150-0.4921	8.000-12.500	D33	12.5
0.3150-0.5000	8.000-12.700	D36	12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.

3. Application:

The dies can be used in ferrous and non-ferrous wire drawing applications.

4. Advantage:

Available for most wire drawing operations.
Offered in a wide range of diameters.
For use in wet and dry drawing applications.
For use in pressure and non-pressure applications.
